| Extraction apparatus for the quantitative separation of
substances by solvents

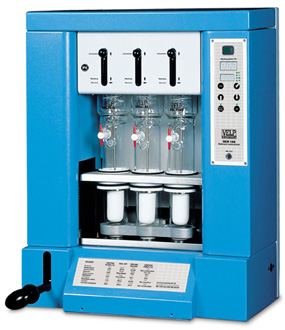

The SER 148/3 unit allows the quantitative separation of a
substance or a group of substances (e.g. fats) from a mixture of
solids or semisolids.
The extraction is performed, according to
the Randall technique, in two phases with a final recovery of
the used solvent, allowing a reduction of atmospheric pollution, of
the extraction time and of the costs of analysis.
The equipment,
designed for optimized manuality,
is controlled by a programmable
microprocessor allowing to choose among 29 programs; two different
displays will constantly show actual temperature and residual
working time for the selected program.
The extractions are
performed under high safety conditions because the equipment follows
the norms CEI EN 60529 with an IP 55 protection degree and is
manufactured from advanced materials and with innovative technical
details.
The main sectors of application include the analysis
of food, feed, detergents, rubber and plastic formulates,
pharmaceutical products, soils and others, for their content of
soluble components like fats, tensides, plastifiers and
pesticides.
Suitable for
AOAC, TAPPI, UNI, EPA, ASTM, APHA, AWWA,
WEF
Specifications |
