| SMS

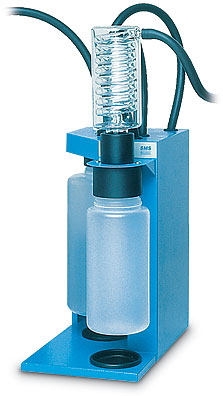

The SMS unit is designed for the neutralization of toxic,
noxious and corrosive fumes coming from oxidative mineralizations or
other processos.
The system is supplied at a two stage
configuration:
- condensation
- neutralization
The unit has
a variety of applications, from the Kjeldahl method to acid or basic
gases control and permits the correct disposal of polluting
substances, avoiding dangerous emissions to the workplace and to the
environment.
The unit grants its maximum efficiency if connected
to Velp recirculating water vacuum pump (code 10.0198).
Specifications | |
|
|
| Epoxy
painted inox structure studied and tested in order to give to the
instrument an excellent resistance to attacks from chemicals
agent |
| Capacious
containers for the neutralization solution and for the condensate
collection |
| Weight: |
3.5
kg | |
|
| Advantages |
|
|
| A highly
efficient neutralization, due to the optimized gas-liquid
contact |
| Can be used
for both basic and acid neutralization |
| The final
polishing step of adsorption on activated carbon, ensures a high
level of purity of the gases leaving the unit |
The
apparatus is safe and practical to use.
Disposal of condensates,
control and replacement of neutralizing solution are very
simple | |
|
|
| Instrument |
Code |
| SMS |
F307C0199 | |
|
Upon
request accessories
(3กใ stage - adsorption) |
Code |
| Pack of 10
refill of activated carbon |
A00001164 |
| Filter for
activated carbon |
A00001165 | |
|
 |
|
|
|
| 500 |
|
|
|
|
190 |
|
|
| 300 |
|
|
|
|
|
|
|
|
|
|
|
|
|
