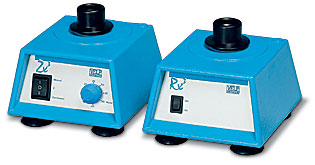

| Vortex mixer
An
instrument designed for mixing substances in test tubes or small
flasks by a shaking and circular movement.
Available in two
versions: with continuous operation and possibility of changing the
frequency of vibration (type ZX3), or discontinuous with constant
vibration speed (type RX3).
Specifications | |
|
| Structure
made in aluminium casting, epoxy painted in order to give to the
instrument an excellent resistance to the attack of chemical and
mechanical agents and to corrosion in general |
| Very strong
sucker feet for strong fixing and high stability of the apparatus
and to avoid vibrations transmission to the working
bench |
| Pick-up attachment: |
Ø 55
mm |
| Stirring frequency: |
0¡Â40
Hz |
| Power: |
45
W |
| Weight: |
2
kg | |
|
|
| Instruments |
Volts |
Hertz |
Code |
| ZX3 |
220-240 |
50 |
F20220176 |
| ZX3 |
220-240 |
60 |
F20230176 |
| ZX3 |
110-120 |
60 |
F20240176 |
| RX3 |
220-240 |
50 |
F20220171 |
| RX3 |
220-240 |
60 |
F20230171 |
| RX3 |
110-120 |
60 |
F20240171 |
| Different
power supply on request | |
|
| Accessories upon request for ZX3 |
Code |
Stand for
25 microvials 1.5 mI -
Eppendorf type |
A00001048 |
| Stand for
microtiter |
A00001047 |
| Supporting
plate Ø 90 mm |
A00001050 | |
|
 |
|
|
| 134 |
|
|
|
150 |
|
150 |
|
|
 |
 |
|
|
|
 |
|
|
A00001047 |
|
A00001050 |
|
|
|
A00001048 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
